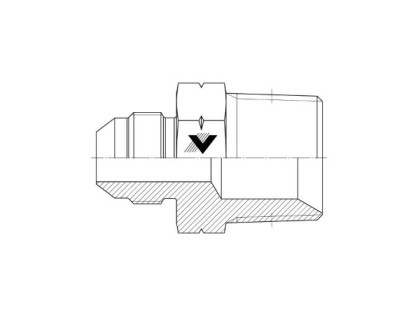

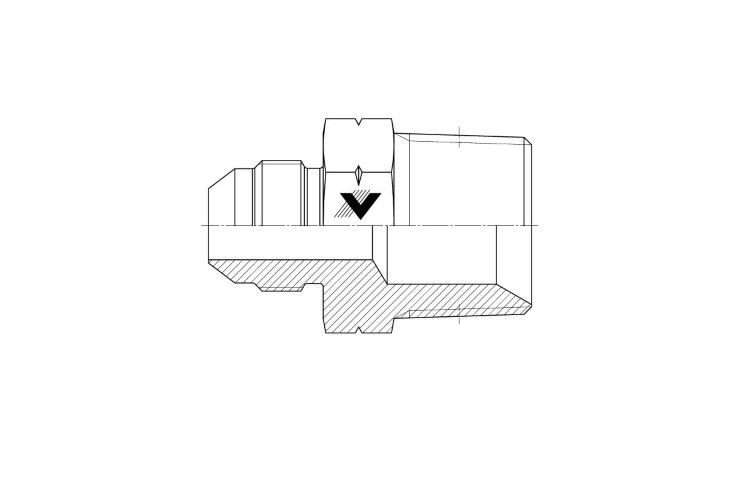

JIC – NPT Adaptor
| Volz | Article No | Dash |
|---|---|---|
| 203568 | 7/16 JIC X 1/8 NPT | -4-2 |
| 203569 | 7/16 JIC X 1/4 NPT | -4-4 |
| 203570 | 7/16 JIC X 3/8 NPT | -4-6 |
| 221068 | 7/16 JIC X 1/2 NPT | -4-8 |
| 203575 | 1/2 JIC X 1/8 NPT | -5-2 |
| 203576 | 1/2 JIC X 1/4 NPT | -5-4 |
| 203577 | 1/2 JIC X 3/8 NPT | -5-6 |
| 215463 | 1/2 JIC X 1/2 NPT | -5-8 |
| 203571 | 9/16 JIC X 1/8 NPT | -6-2 |
| 203572 | 9/16 JIC X 1/4 NPT | -6-4 |
| 203573 | 9/16 JIC X 3/8 NPT | -6-6 |
| 203574 | 9/16 JIC X 1/2 NPT | -6-8 |
| 203578 | 3/4 JIC X 1/4 NPT | -8-4 |
| 116569 | 3/4 JIC X 3/8 NPT | -8-6 |
| 116568 | 3/4 JIC X 1/2 NPT | -8-8 |
| 203579 | 3/4 JIC X 3/4 NPT | -8-12 |
| 221067 | 3/4 JIC X 1 NPT | -8-16 |
| 203580 | 7/8 JIC X 3/8 NPT | -10-6 |
| 203581 | 7/8 JIC X 1/2 NPT | -10-8 |
| 203582 | 7/8 JIC X 3/4 NPT | -10-12 |
| 215467 | 7/8 JIC X 1 NPT | -10-16 |
| 133112 | 1.1/16 JIC X 1/4 NPT | -12-4 |
| 203583 | 1.1/16 JIC X 1/2 NPT | -12-8 |
| 200622 | 1.1/16 JIC X 3/4 NPT | -12-12 |
| 203584 | 1.1/16 JIC X 1 NPT | -12-16 |
| 215470 | 1.1/16 JIC X 1.1/4 NPT | -12-20 |
| 203585 | 1.5/16 JIC X 1/2 NPT | -16-8 |
| 203586 | 1.5/16 JIC X 3/4 NPT | -16-12 |
| 203587 | 1.5/16 JIC X 1 NPT | -16-16 |
| 203588 | 1.5/16 JIC X 1.1/4 NPT | -16-20 |
| 203589 | 1.5/16 JIC X 1.1/2 NPT | -16-24 |
| 215468 | 1.5/8 JIC M X 3/4 NPT | -20-12 |
| 203590 | 1.5/8 JIC X 1 NPT | -20-16 |
| 203591 | 1.5/8 JIC X 1.1/4 NPT | -20-20 |
| 203592 | 1.5/8 JIC X 1.1/2 NPT | -20-24 |
| 117830 | 1.7/8 JIC X 1 NPT | -24-16 |
| 203593 | 1.7/8 JIC X 1.1/4 NPT | -24-20 |
| 117791 | 1.7/8 JIC X 1.1/2 NPT | -24-24 |
| 218114 | 1.7/8 JIC X 2 NPT | -24-32 |
